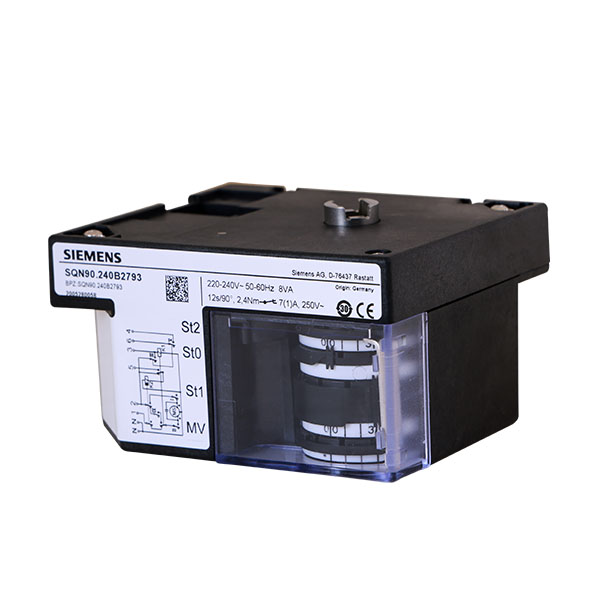

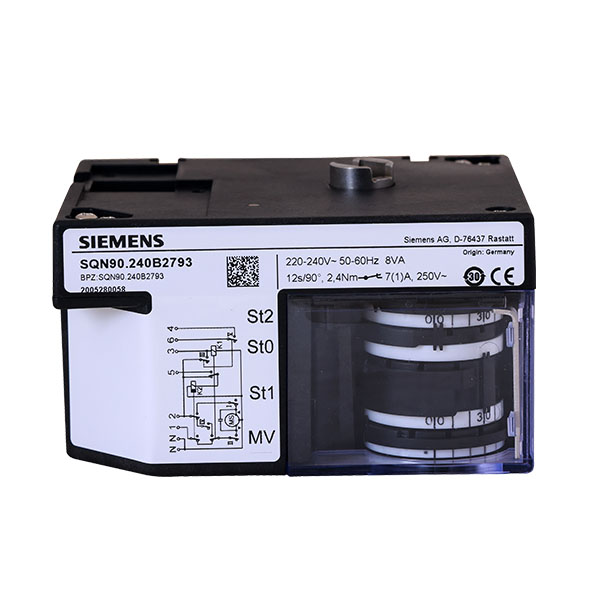

● Reversible electromotoric actuators for air dampers and valves of oil or gas burners of small to medium capacity.
● In connection with P-PI or PID controllers, such as the RWF40...
● Directly via the different types of burner controls, such as LOA..., LMO..., LMG..., LFL...
● In connection with 1- or 2-wire control or 3-position controllers
● Internal position indication
● Mains voltage AC 220... 240V， -15%/+10%，50... 60Hz±6%
AC 100... 110V，-15%/+10%，50... 60Hz±6%
● Angular adjustment Max. 90°, scale range 0...90°
● Safety class II to DIN EN 60730
● Environmental conditions Operation DIN EN 60721-3-3
Climatic conditions Class 3K5
Mechanical conditions Class 3M2
Temperature range -20...+60 °C
Humidity <95 % r.h.
● Weight (average) Approx. 550 g
