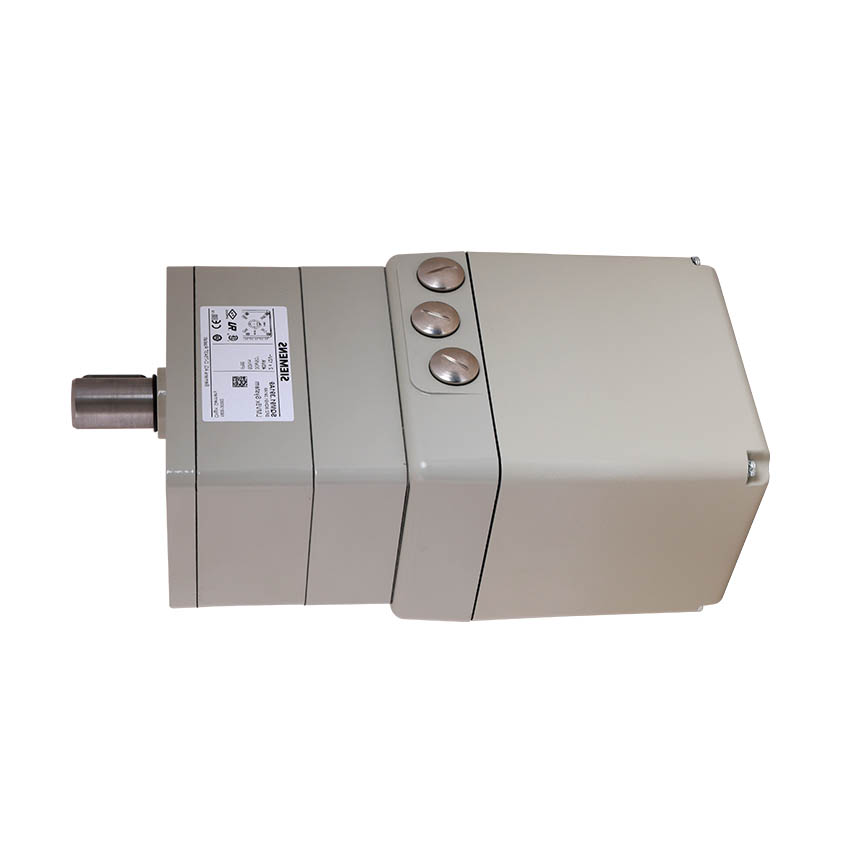

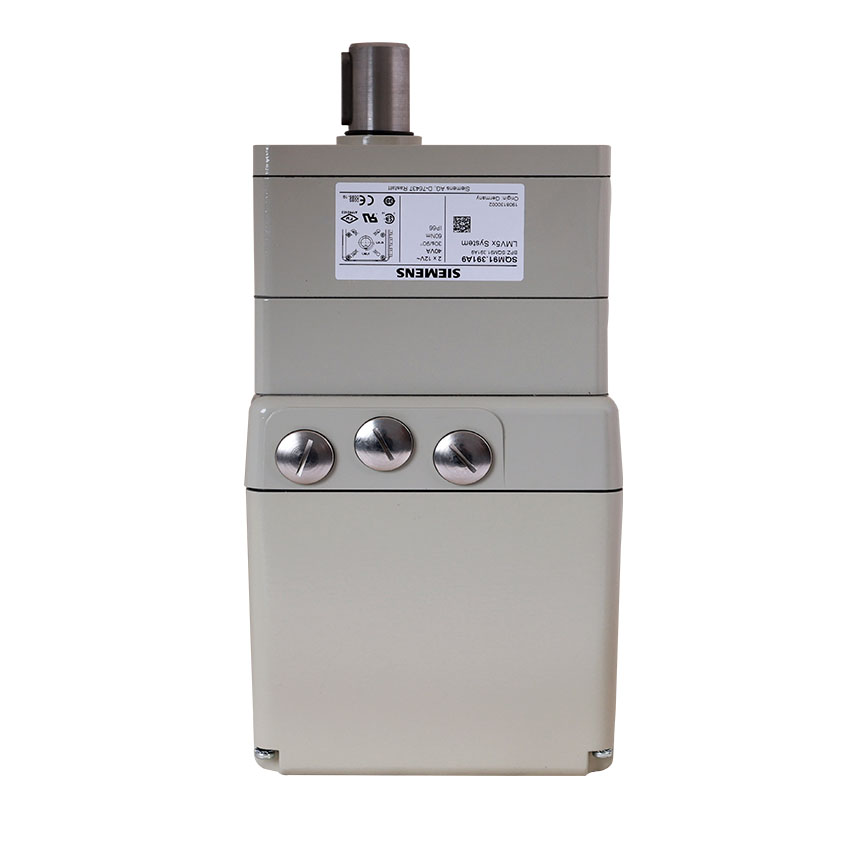

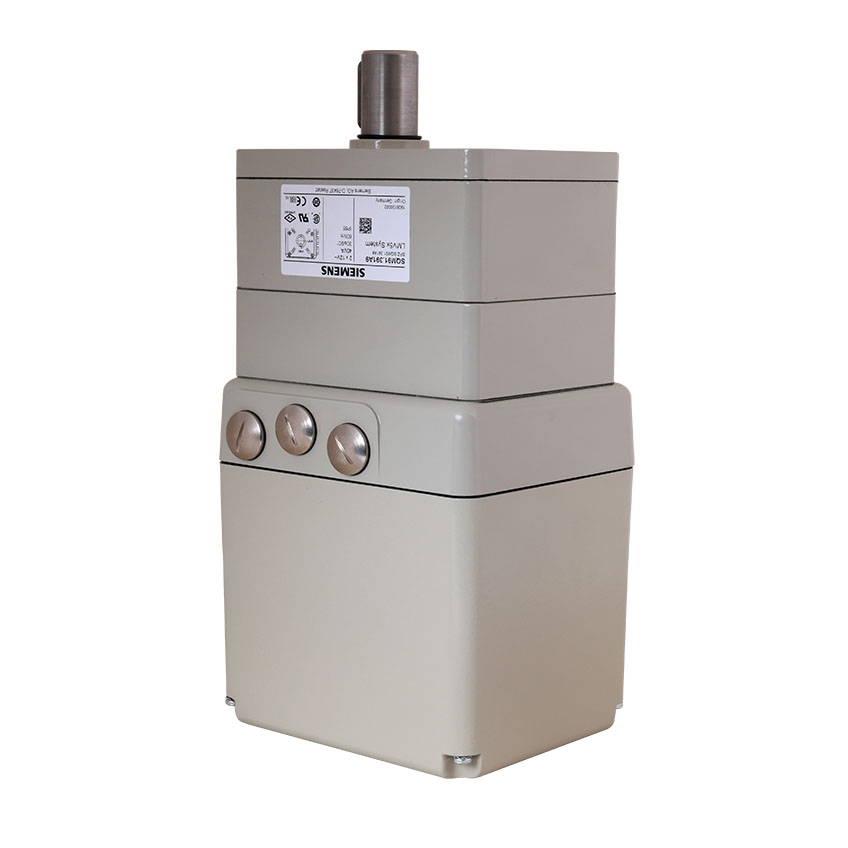

● The actuators are of rugged design and have a gear train with only little backlash.

● Control and position feedback take place via a bus system (CAN). The bus cable is also used for powering the actuators.

● The actuators are driven by stepper motors and can be positioned with a resolution of 0.1°.

● Operating voltage AC 2 x 12 V

● Power consumption Approx. 40 VA at rated mains voltage

● Angular adjustment Max. 0...90°

● Reproducibility of actuator positions across the usable angular range of 0...90° ±0.8°

● Safety class III (as per DIN EN 60730-1)

● Degree of protection IP66 as per EN 60529, provided adequate cable entries are used

● Environmental conditions Operation IEC 60721-3-3

                                             Climatic conditions Class 3K3

                                             Mechanical conditions Class 3M3

                                             Temperature range -20...+60 °C

                                             Humidity <95% r.h.

● Weight Approx. 7.2 kg

● Lifetime 250,000 start cycles (OFF→ON→OFF) under load with the rated torque in the entire rotation angle range. 2,000,000 control cycles under load with

   75% of rated torque in rotation angle range of 10°
